Primary Steam Reforming Catalyst Z428Q/Z429Q for Hydrogen production and Ammonia Plants
Detail Information
Product Overview
Primary Steam Reforming Catalyst Z428Q/Z429Q
SYAMCAT Z428Q and Z429Q are nickel-based catalysts designed for use in primary steam reformers. Z428Q is intended for upper-tube loading, while Z429Q is intended for lower-tube loading and may be considered for full-tube loading subject to process conditions. The final catalyst combination should be selected according to the reformer configuration and specific operating requirements.
Application Case
Application Case: Z428Q/Z429Q in a Hydrogen Production Unit
Project Background
SYAMCAT provided an integrated catalyst solution for a hydrogen production unit in the Middle East. This product page focuses on the Z428Q and Z429Q primary reforming catalysts used in the project.

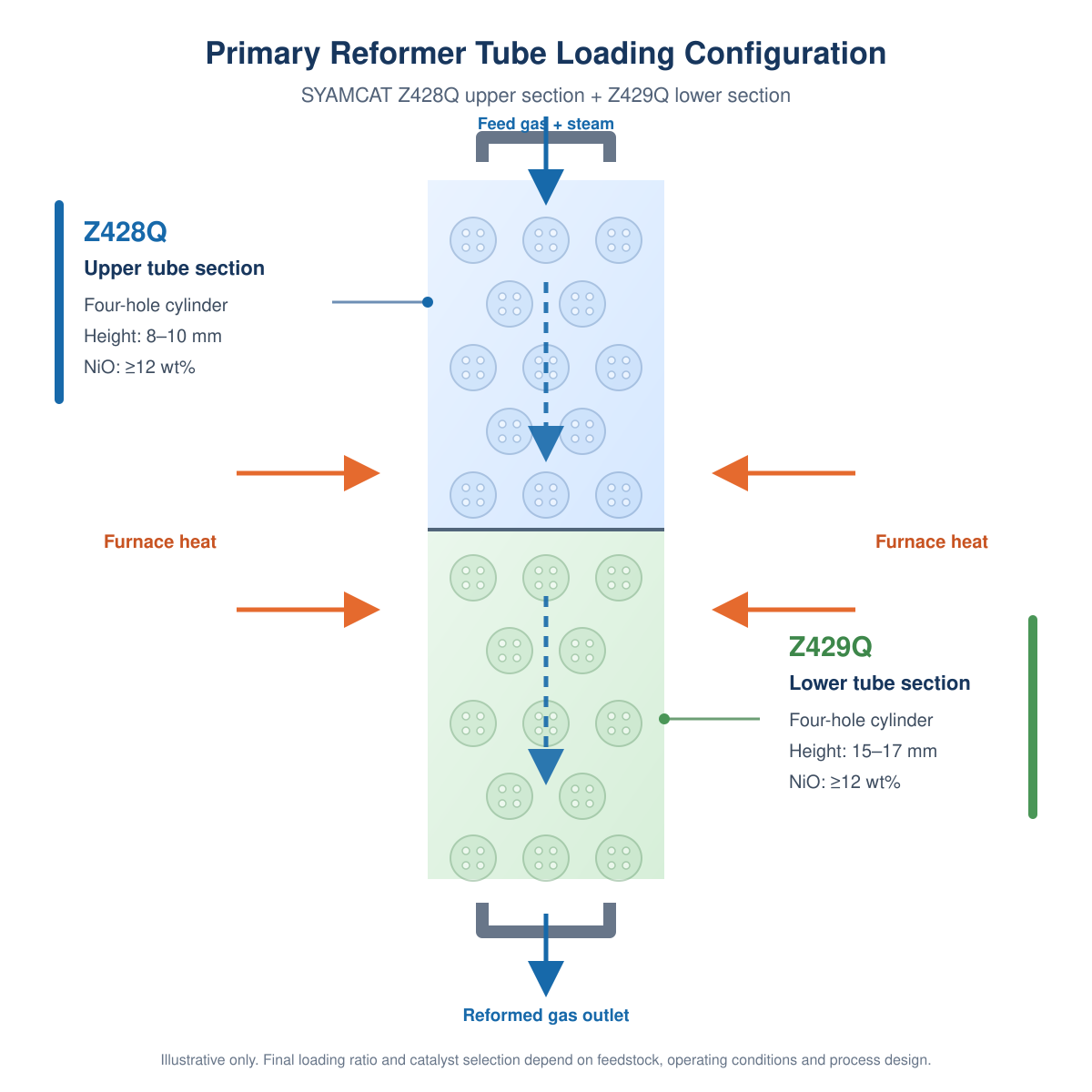

Catalyst Loading diagram
Z428Q was loaded in the upper section of the primary reformer tubes, while Z429Q was loaded in the lower section. The two catalysts were selected and loaded according to the unit’s feedstock and operating conditions.
Operating Performance
Despite fluctuations in feedstock conditions, the primary reformer maintained stable operation. At the time of review, Z428Q and Z429Q had operated stably for six years. Based on the project assessment at that time, the expected total service life was approximately eight years.
The above results are based on this specific project. Actual catalyst performance depends on feed composition, operating conditions, loading configuration and plant operation.
Z428Q — Upper Section Catalyst
Loading position: Upper tube section
Height: 8–10 mm
Crushing strength: >200 N/piece
Z429Q — Lower Section Catalyst
Loading position: Lower tube section
Height: 15–17 mm
Crushing strength: >300 N/piece
Operating Conditions of Primary Steam Reforming Catalyst
|
Parameter
|
Hydrogen plant
|
Ammonia plant
|
Methanol plant |
Oxo-plant
|
|
Inlet temperature/℃
|
450-650 |
450-650 |
450-650 |
450-650 |
|
Outlet temperature/℃
|
700-900
|
650-850
|
800-980 |
800-980
|
|
Pressure/MPa
|
Atmospheric-6.0
|
Atmospheric-6.0
|
Atmospheric-6.0 |
Atmospheric-6.0
|
Steam/Carbon ratio | ≥2.7 | ≥2.7 | ≥2.5 | ≥1.5 |
Carbon space velocity/h-1 | 500-2000 | 500-2000 | 500-2000 | 500-2000 |
Feedstock | Natural gas, oilfield gas, and other gaseous hydrocarbon feedstocks. | |||
Specification of Primary Steam Reforming Catalyst
|
Parameter
|
Unit |
SYAMCAT Z428Q
|
SYAMCAT Z429Q
|
|
Recommended loading position
|
—— |
Upper section
|
Lower section
|
|
Appearance
|
—— |
Four-hole cylinder
|
Four-hole cylinder
|
|
Height
|
mm |
8–10
|
15–17
|
Outer diameter | mm | 16–16.5 | 16–16.5 |
Hole diameter × number of holes | mm | Φ4 × 4 holes | Φ4 × 4 holes |
Bulk density | g/cm³ | 0.90–1.05 | 0.90–1.05 |
Crushing strength | N/piece | >200 | >300 |
NiO content | wt% | ≥12 | ≥12 |
Application in Hydrogen Production
SYAMCAT Z428Q and Z429Q are primary steam reforming catalysts designed for different loading zones in reformer tubes. Z428Q is generally used in the upper section, while Z429Q is generally used in the lower section. Depending on the reformer design and operating requirements, either product may also be combined with other suitable reforming catalysts.
The catalyst combination and loading ratio are not fixed. They should be determined according to the specific reformer configuration and catalyst loading design.
Performance Characteristics
Stable Reforming Activity
Good dispersion of the nickel active component supports stable reforming activity during long-term operation.
Effective Heat Transfer
The catalyst structure is designed to support effective heat transfer through the catalyst bed during primary steam reforming.
Mechanical Strength
The current TDS specifies crushing strength above 200 N/piece for Z428Q and above 300 N/piece for Z429Q.
Long-Term Project Performance
In the referenced hydrogen production project, Z428Q and Z429Q had operated stably for six years at the time of review.
Technical Evaluation & Tailored Catalyst Solution
Catalyst selection and loading configuration should be tailored to the specific reformer design and plant operating requirements. Please provide the available information on your reformer configuration, tube dimensions, operating conditions, production capacity and current catalyst arrangement.
SYAMCAT’s technical team can review your unit data and develop a tailored catalyst selection and loading plan, including the appropriate combination and distribution of Z428Q, Z429Q or other suitable reforming catalysts.
